Compare Hematology Analyzers

Print this page

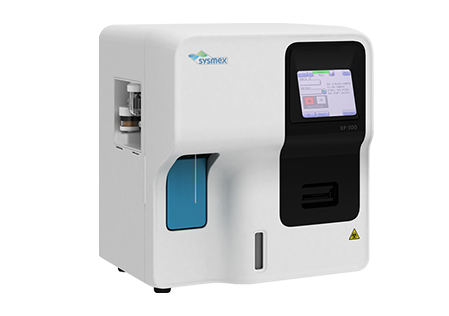

XP-300

Analizador de hematología automatizado XP-300™

Simple, fast, powerful automation
El XP-300 proporciona un CBC con ocho parámetros notificables y un diferencial WBC de tres partes con un recuento absoluto de neutrófilos (ANC). Ideal para un laboratorio satélite de una clínica, el XP-300 es una solución sencilla, rápida y potente para su laboratorio.

Ideal para:

  • Laboratorios del consultorio médico
  • Centros de atención ambulatoria
  • Clínicas
  • Hospitales pequeños
  • Analizador de copias de seguridad

Summary

16.5" x 19" x 14" / 66 lbs
Maximum Throughput
60 muestras por hora
Sample Volume
Modo abierto 50 mm

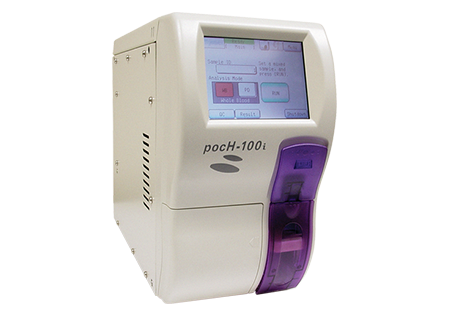

Analizadores de hematología pocH-100i

Tecnología innovadora, fácil y fiable.
Diseñado para laboratorios que analizan hasta 30 muestras al día, en un espacio mínimo

Ideal para:

  • Laboratorios del consultorio médico
  • Centros de atención ambulatoria
  • Clínicas
  • Analizador de copias de seguridad

Summary

7.3" (W) X 13.8" (D) X 18.1" (H); 30.8 LBS
Maximum Throughput
25 muestras/hora
Sample Volume
Modo sangre completa: 15 μL EDTA

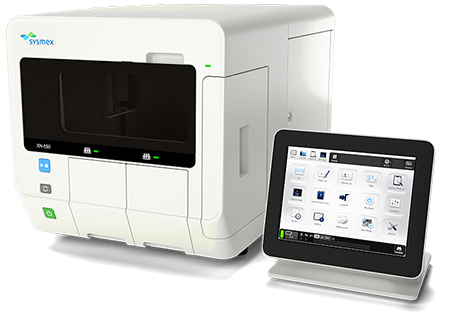

XN-550 image

Analizador de hematología automatizado XN-550™

Automatización inteligente y asequible para laboratorios de menor volumen
El XN-550 proporciona valores clínicos y operativos ampliados para su pequeño hospital, clínica o laboratorio de consultorio médico. Con automatización y un diferencial de seis partes en cada muestra, este analizador compacto proporciona la estandarización y el diagnóstico que su laboratorio necesita.

Ideal para:

  • Laboratorios del consultorio médico
  • Centros de atención ambulatoria
  • Clínicas
  • Hospitales pequeños
  • Analizador de copias de seguridad

Summary

17.72"" x 25.98"" x 17.72"" / 116.84 lbs
XN-530 Monitor: 10.5” X 8.25” X 9.5” (2.25” thick)
Maximum Throughput
Hasta 60 muestras/hora en modo sangre completa (WB)
Sample Volume
Modo abierto: 25 mm
Modo cerrado: 25 mm
Modo prediluido: 70 µL
Modo fluido corporal: 70 µL

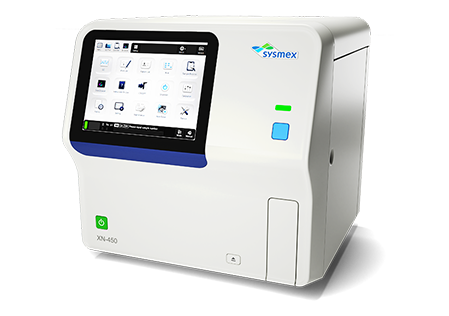

XN-450 image

Analizador de hematología automatizado XN-450™

Intelligent, compact analyzer offers big benefits for your small lab
The XN-450 is a closed-mode sampler integrated IPU with LCD color touchscreen and intuitive XN software. With the clinical and operational values found on its sister XN-Series™, the XN-450 analyzers brings small labs powerful diagnostics and reliable analysis to help optimize your lab's performance.

Ideal para:

  • Laboratorios del consultorio médico
  • Centros de atención ambulatoria
  • Clínicas
  • Analizador de copias de seguridad

Summary

7.7” X 17.3” X 18.1” / approx. 77.2 lbs.
Maximum Throughput
Up to 60 samples/hour in whole blood (WB) mode
Sample Volume
Modo sangre completa: 25 μL
Modo predilución: 70 μL
Modo fluido corporal: 70 μL

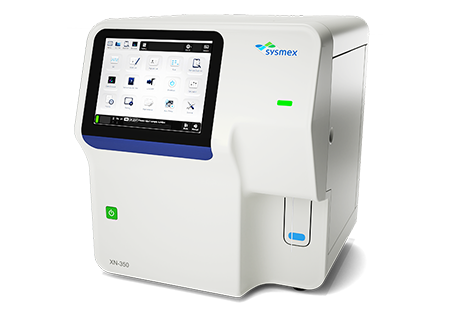

XN-350 image

Analizador de hematología automatizado XN-350™

El analizador simple que su laboratorio necesita
Con un diferencial de seis partes en cada muestra y una interfaz de usuario común, el XN-350 es un analizador de muestreo compacto de tubo abierto. Con la misma poderosa e intuitiva tecnología XN de la XN-Series™ más grande, el XN-350 es la solución simple que su laboratorio necesita.

Ideal para:

  • Laboratorios del consultorio médico
  • Centros de atención ambulatoria
  • Clínicas
  • Analizador de copias de seguridad

Summary

17.7” X 18.3” X 20.3” / approx. 77.2 lbs
Maximum Throughput
Hasta 60 muestras/hora en modo sangre completa (WB)
Sample Volume
Modo sangre completa: 25 μL
Modo predilución: 70 μL
Modo fluido corporal: 70 μL

Additional Specifications

Technology
Fluroscent Flow Cytometry
None
Fluroscent Flow Cytometry
No aplicable
Fluroscent Flow Cytometry
WBC
6-part differential (IG #, %)
Fluroscent Flow Cytometry
WBC
6-part differential (IG #, %)
Fluroscent Flow Cytometry
WBC
6-part differential (IG #, %)
DC Impedance method with Hydrodynamic Focusing
WBC
RBC
PLT
DC Impedance method with Hydrodynamic Focusing
WBC
RBC
PLT
DC Impedance method with Hydrodynamic Focusing
RBC
PLT
DC Impedance method with Hydrodynamic Focusing
RBC
PLT
DC Impedance method with Hydrodynamic Focusing
RBC
PLT
Cyanide-Free SLS Method
Hemoglobin
Cyanide-Free SLS Method
Hemoglobin
Cyanide-Free SLS Method
Hemoglobin
Cyanide-Free SLS Method
Hemoglobin
Cyanide-Free SLS Method
Hemoglobin
RBC Pulse Height Detection
HCT
RBC Pulse Height Detection
HCT
RBC Pulse Height Detection
HCT
RBC Pulse Height Detection
HCT
RBC Pulse Height Detection
HCT
Linearity
WBC: 1.0 - 99.0 X 103/mL
RBC: 0.3 - 7.0 X 106/mL
PLT: 10 - 999.9 X 103/mL
Linearity
WBC 1.0 – 99.0 X 103/μL
RBC 0.3 – 7.0 X 106/μL
HGB 0.1 – 25.0 g/dL
HCT 10 – 60%
PLT 10 – 999.9 X 103/μL
Linearity
WBC: 0.00 - 440.0 X 10^3/mL
RBC: 0.00 - 8.6 X 10^6/mL
PLT: 0 - 5,000 X 10^3/mL
Linearity
WBC: 0.00 – 440.00 X 10^3/μL
RBC: 0.00 – 8.60 X 10^6/μL
PLT: 0 – 5,000 X 10^3/μL
Linearity
WBC: 0.00 – 440.00 X 10^3/μL
RBC: 0.00 – 8.60 X 10^6/μL
PLT: 0 – 5,000 X 10^3/μL
Parameters
WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, LYM#, LYM%, MXD#, MXD%, NEUT#, NEUT%, RDW-SD, RDW-CV, MPV
Parameters
WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, LYM#, LYM%, MXD#, MXD%, NEUT#, NEUT%, RDW-SD, RDW-CV, MPV
Parameters
WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV, MPV, NEUT#, NEUT%; IG#, IG%; LYMPH#, LYMPH%; MONO#, MONO%; EO#, EO%; BASO#, BASO%; Retic Parameters with Optional License: RET#; RET%, IRF; RET-He; Body Fluid Parameters with Optional License: TC-BF, WBC-BF, RBC-BF PMN #, PMN%, MN#, MN%
Parameters
WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV, MPV, NEUT#, NEUT%; IG#, IG%; LYMPH#, LYMPH%; MONO#, MONO%; EO#, EO%; BASO#, BASO%; Retic Parameters with Optional License: RET#; RET%, IRF; RET-He; Body Fluid Parameters with Optional License: TC-BF, WBC-BF, RBC-BF PMN #, PMN%, MN#, MN%
Parameters
WBC, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, RDW-SD, RDW-CV, MPV, NEUT#, NEUT%; IG#, IG%;
LYMPH#, LYMPH%; MONO#, MONO%; EO#, EO%; BASO#, BASO%
Retic Parameters with Optional License:
RET#; RET%, IRF; RET-He
Body Fluid Parameters with Optional License:
TC-BF, WBC-BF, RBC-BF PMN #, PMN%, MN #, MN%
Principles and Technology
RBC, PLT, WBC: Direct Current detection method
HGB: Non-cyanide method
HCT: Cumulative pulse height detection method
Principles and Technology
RBC, PLT, WBC: Direct Current detection method
HGB: Non-cyanide method
HCT: Cumulative pulse height detection method
Principles and Technology
Fluorescent Flow Cytometry (WBC/6-part DIFF/NRBC Flagging), DC Impedance method with hydrodynamic focusing (RBC/PLT), Cyanide-free SLS method (HGB)
Principles and Technology
Fluorescent Flow Cytometry (WBC/6-part DIFF/NRBC Flagging), DC Impedance method with hydrodynamic focusing (RBC/PLT), Cyanide-free SLS method (HGB)
Principles and Technology
Fluorescent Flow Cytometry (WBC/6-part DIFF/NRBC Flagging), DC Impedance method with hydrodynamic focusing (RBC/PLT), Cyanide-free SLS method (HGB)
Optional Parameters
None
Optional Parameters
None
Optional Parameters
Licencia RET opcional:
RET#; RET%, IRF; RET-He
Licencia BF opcional:
TC-BF, WBC-BF, RBC-BF, MN#, MN%, PMN#, PMN%
Optional Parameters
Licencia RET opcional:
RET#; RET%, IRF; RET-He
Licencia BF opcional:
TC-BF, WBC-BF, RBC-BF, MN#, MN%, PMN#, PMN%
Optional Parameters
Licencia RET opcional:
RET#; RET%, IRF; RET-He
Licencia BF opcional:
TC-BF, WBC-BF, RBC-BF, MN#, MN%, PMN#, PMN%

Other
Decision Rules Onboard
None
Decision Rules Onboard
None
Decision Rules Onboard
Automatic Rerun/Reflex rules
Decision Rules Onboard
Comment, validation and output rules
Decision Rules Onboard
Comment, validation and output rules
Interface
Uni-directional
Interface
Uni-directional
Interface
Bi-directional
Interface
Bi-directional
Interface
Bi-directional
Remote Monitoring
None
Remote Monitoring
None
Remote Monitoring
Included
Remote Monitoring
Included
Remote Monitoring
Included
BCQMh
None
BCQMh
None
BCQMh
Real-time peer group comparison
BCQMh
Real-time peer group comparison
BCQMh
Real-time peer group comparison
Continuous Calibration Verification
None
Continuous Calibration Verification
None
Continuous Calibration Verification
Confirmed every time controls are analyzed
Continuous Calibration Verification
Confirmed every time controls are analyzed
Continuous Calibration Verification
Confirmed every time controls are analyzed
Training
eLearning Module
Training
Online training
Training
Unlimited Virtual Instructor-Led Training
Training
Unlimited Virtual Instructor-Led Training
Training
Unlimited Virtual Instructor-Led Training
Printers
External printer included
Printers
Internal printer included
Printers
External printer included
Printers
External printer included
Printers
External printer included

Reagents and Controls
Reagents
STROMATOLYSER™-WH
CELLPACK™
Reagents
pocH-pack D
pocH-pack L
XW CELLCLEANTM
Reagents
CELLPACK™ DCL
CELLPAK DFL
SULFOLYSER™
Lysercell™ WDF
Fluorocell™ WDF
Fluorocell RET
CELLCLEAN™ Auto
Reagents
CELLPACK™ DCL
CELLPACK™ DFL
SULFOLYSER™
Lysercell™ WDF
Fluorocell™ WDF
Fluorocell™ RET
CELLCLEAN™ Auto
Reagents
CELLPACK™ DCL
CELLPACK™ DFL
SULFOLYSER™
Lysercell™ WDF
Fluorocell™ WDF
Fluorocell RET
CELLCLEAN™ Auto
Controls and Calibrators
EIGHTCHECK™ - 3WP X-TRA
Controls and Calibrators
EIGHTCHECK™-3WP X-TRA tri-level
Controls and Calibrators
XN-L CHECK™
XN CHECK™
XN CHECK™ BF (required with optional BF License)
WRP CHECK™ EX
Controls and Calibrators
XN-L CHECK™
XN CHECK™
XN CHECK™ BF (required with optional BF License)
WRP CHECK™ EX
Controls and Calibrators
XN-L CHECK™
XN CHECK™
XN CHECK™ BF (required with optional BF License)
WRP CHECK™ EX
