For research use only

XF-1600™ Flow Cytometer

Increased efficiency and confidence for your flow cytometry workflow

For Research Use Only. Not for use in diagnostic procedures. RUO instruments must be validated before use in clinical practice.

Request Info

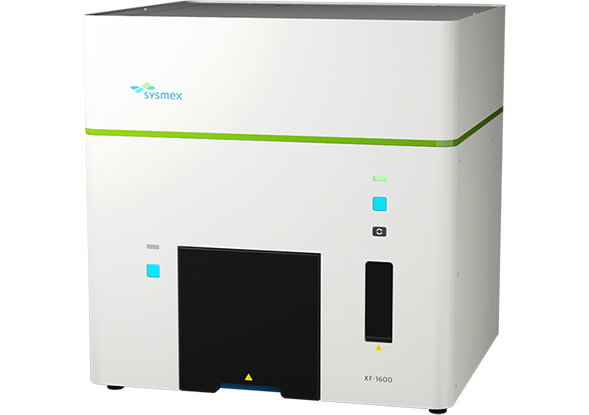

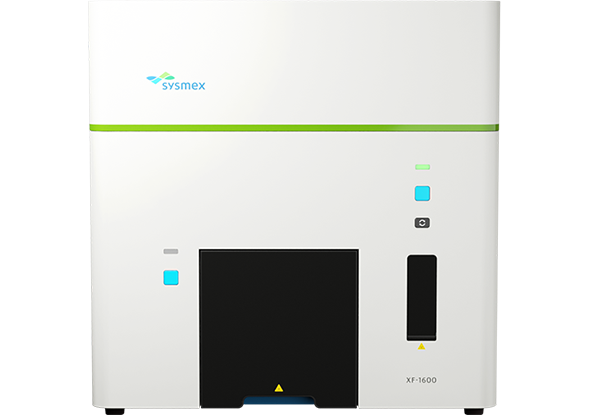

XF-1600 Flow Cytometer

A flow cytometer for immunophenotyping

The XF-1600 integrates a multi-laser optical layout with a fluidics design proven in our XN-Series™ hematology analyzers for reliable performance, complemented by an easy-to-use graphical interface. This instrument helps laboratories simplify their processes and increase workflow efficiency with confidence in their results.

Not all products and services are registered or sold in all markets.

  • 10 fluorescence detectors for flexibility and future expansion based on a lab’s individual needs
  • Three light sources to provide the capability to use numerous fluorochromes
  • Compatible with Helmer CW® Cell washer, eliminating the need to transfer tubes from one rack to another for cell wash steps prior to analysis
  • 488nm, 640nm, 405nm
  • Intuitive, user-friendly software with a familiar feel
  • Both single-tube and autoloader sample introduction
  • Provides FCS 3.0 files for data analysis away from the flow cytometer
  • LIS compatibility for elimination of transcription errors
  • Technical Specifications
    Download Brochure

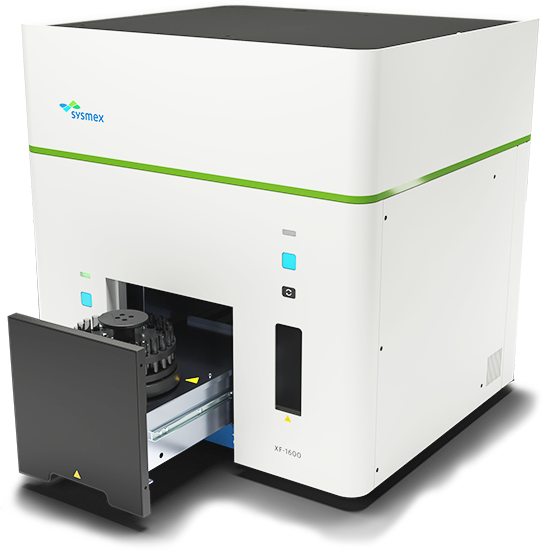

  • Principles and Technology Standard tube loading port and rotor-based autoloader with optimal sample mixing capabilities. Three spatially separated lasers: 405nm, 488 nm, and 638 nm.
  • Fluorescence Detectors 10 fluorescent channels
  • Sample Flow Rate
    • Low: 5µL per minute
    • Medium: 30µL per minute and 60µL per minute
    • High: 90µL per minute and 120µL per minute
  • Sensitivity
    • FITC < 100
    • PE < 50
    • APC < 100
  • Dimensions Approx. 27.5 (W) X 25.0 (D) X 29.0 (H) in.; approx. 220 lbs.

Watch: XF-1600 Overview Video

The XF-1600 integrates a multi-laser optical layout with Sysmex’s proven fluidics design for reliable performance in a flow cytometry.

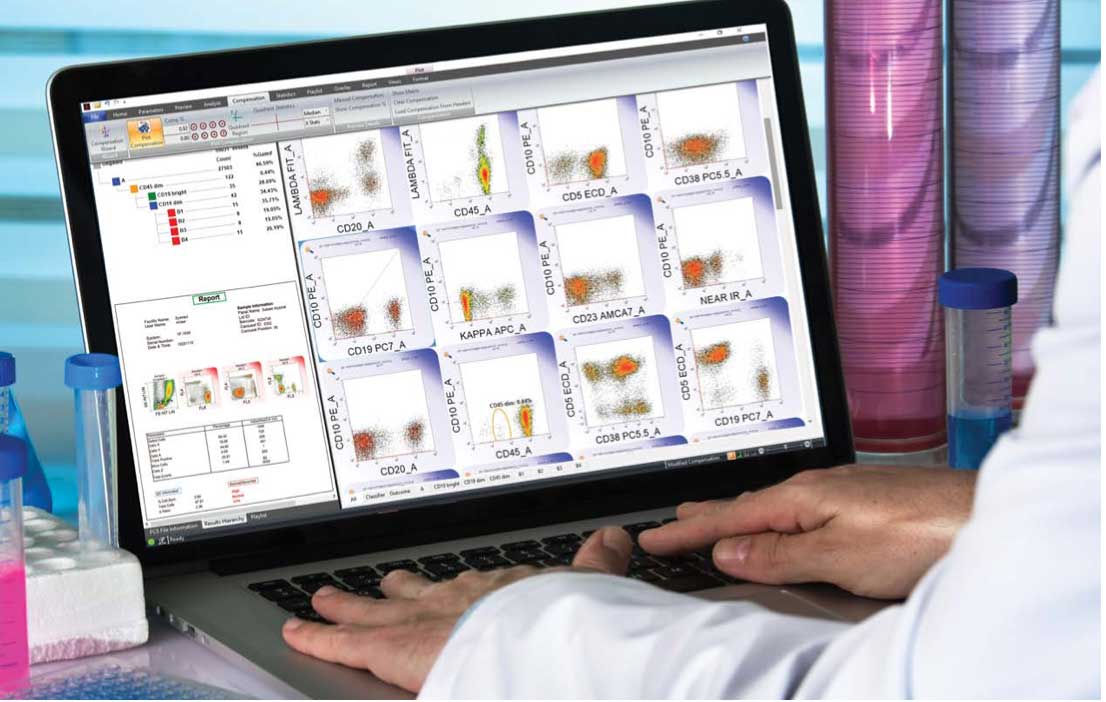

VenturiOne® Flow Cytometry Analysis Software

VenturiOne is unique flow cytometry software that is designed for maximum performance and simplicity to streamline the workflow in your lab.
  • Easily create plots using unique preview feature
  • Process batch analyses of up to 400 files within seconds
  • Calculate automatic compensations
  • Compatible with large data files produced by miltiparameter rare event analysis

Download Brochure

Learn more about the XF-1600™
