XN-1000™ Automated Hematology Analyzer

Stay one step ahead.

Request Info

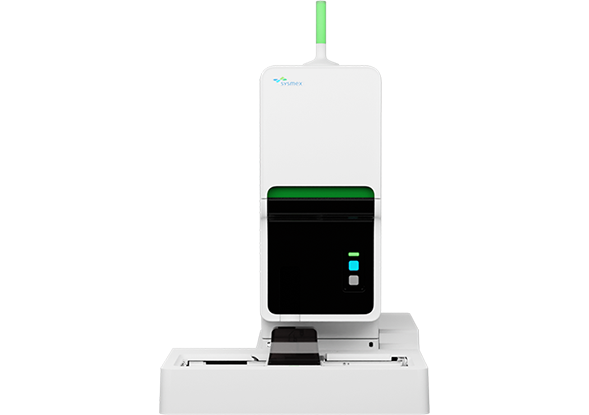

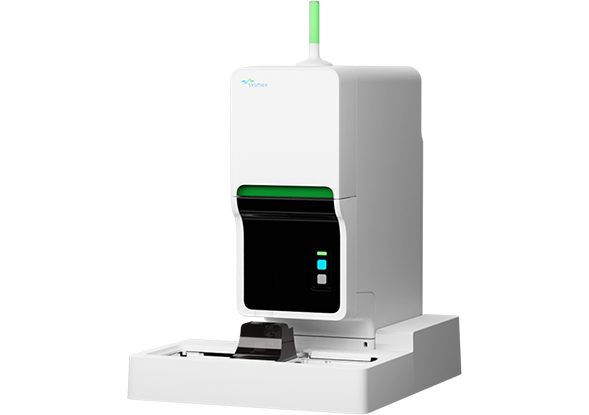

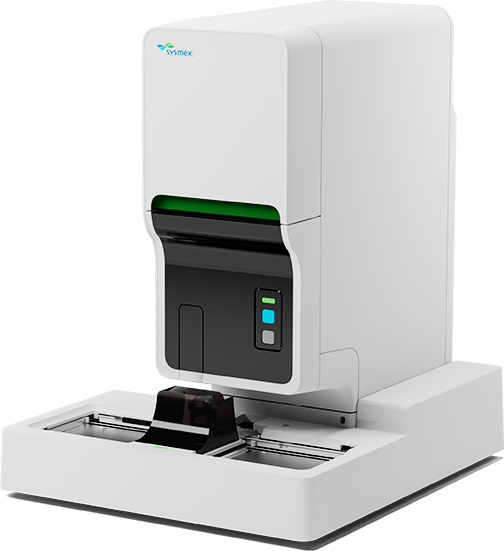

XN-1000 Hematology Analyzer

Change the way you perform hematology

This compact system offers proven and innovative fluorescent flow cytometry to help you deliver a highly comprehensive CBC and differential.

Not all products and services are registered or sold in all markets.

The XN-1000 comes standard with an XN-10 CBC analyzer to provide advanced clinical parameters:

  • Leukopoietic indicators—Immature granulocytes with every differential
  • Erythropoietic indicators—Nucleated RBC with every CBC, reticulocyte hemoglobin (RET-He) and immature reticulocyte fraction (IRF) Optional license
  • Thrombopoietic indicators—Immature platelet fraction (IPF) and a fluorescent platelet count (PLT-F) designed for very low platelet counts Optional license

The XN-1000 provides your lab with productivity and efficiency enhancements like:

  • Autoverification
  • Automatic workload balancing
  • Rerun/reflex testing
  • Reflexive slide preparation
  • Caresphere™ Workflow Solution (WS)
  • Sysmex Validation Solution (VS)

Optional software for your XN-1000:

  • R Software provides a number of standard parameters utilizing Impedance, Hydrodynamic Focusing, Non-cyanide Hgb, RBC Pulse Height Detection and Fluorescent Flow Cytometry Technologies
  • BR Software provides the addition of Body Fluid analysis by utilizing Impedance and Fluorescent Flow Cytometry Technologies
  • PR Software provides the addition of Fluorescent Platelet and Immature Platelet Fraction (IPF) reportable results by utilizing Fluorescent Flow Cytometry Technologies
  • Technical Specifications
    Download Brochure
  • Principles & Technology Fluorescent flow cytometry using a semiconductor laser and hydrodynamic focusing in dedicated channels
  • Parameters
    • Whole Blood: WBC; RBC; HGB; HCT; MCV; MCH; MCHC; PLT (PLT-I, PLT-F); NEUT#, NEUT%; IG#, IG%; LYMPH#, LYMPH%; MONO#, MONO%; EO#, EO%; BASO#, BASO%; NRBC#, NRBC%; RDW-SD; RDW-CV; MPV; RET#, RET%; IRF, RET-He; IPF#, IPF%
    • Body Fluid: TC-BF, WBC-BF, RBC-BF PMN #, PMN%, MN #, MN%
  • Dimensions 25.4" (W) X 29.7" (D) X 33.7" (H); 172 LBS
  • Sample Aspiration Volume
    • Whole Blood Mode: 88 μL
    • Low WBC Mode: 88 μL
    • Pre-dilute Mode: 70 μL
    • Body Fluid Mode: 88 μL
  • Throughput
    • Whole Blood Mode: up to 100 CBC+DIFF samples/hour per module
    • Body Fluid Mode: up to 40 samples/hour per module
  • Linearity
    • WBC: 0.00 – 440.00 X 10³/μL
    • RBC: 0.00 – 8.60 X 10⁶/µL
    • PLT: 0 – 5,000 X 10³/μL
    • WBC-BF: 0.000 – 10.000 X 10³/μL
    • RBC-BF: 0.000 – 5.000 X 10⁶/μL

Learn more about the XN-1000

  • Compare

    Customize your Solution

    Create the perfect hematology solution to fit your lab.

    Configure Now
  • Calculator

    Calculator

    See how much you've been lifting with our weight-savings calculator.

    Calculate Savings

  • Download

    Discover how the XN-Series is reshaping hematology.

    Download the Brochure
Service technicians on computers

Go beyond traditional service to BeyondCare℠

With the BeyondCare system, we can help you maintain the health and longevity of your analyzers through an evidence-based approach that prevents problems.

What we can provide:

  • At-a-glance analyzer performance monitoring for enhanced workflow.
  • Step-by-step standardized troubleshooting helps lab staff resolve issues.
  • Automatic notifications to Sysmex Technical Assistance Center when an on-site service visit is needed.

Learn More
