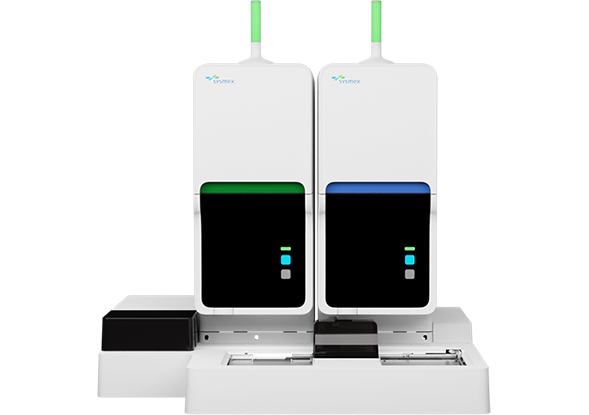

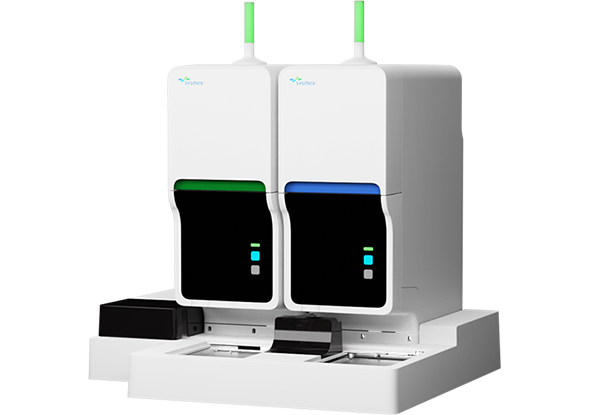

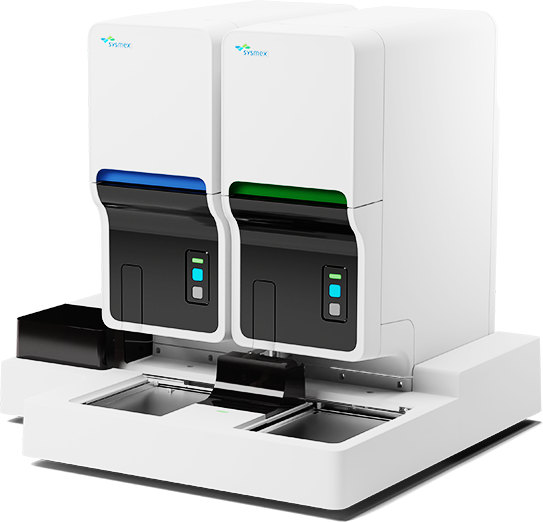

XN-2000™ Automated Hematology Analyzer
Advanced parameters and high processing volume in a small footprint.
Request Info
Two XN analyzers for maximum uptime
This dual analyzer system provides you with the confidence of an automated built-in back-up with comprehensive output parameters.
Not all products and services are registered or sold in all markets.
XN-2000 Automated Hematology Analyzer
- Integrated co-primary system
- 2 XN analyzer modules
- Optional concentrated reagents simplify consumable inventory management
- Optional floor-standing wagon for system and reagents
In addition to traditional CBC results, our Advanced Clinical Parameters include:
- NRBCs with every CBC
- 2 XN-10 analyzer modules or 1 XN-10/1 XN-20 if a lot of abnormal WBC
- Reticulocyte Hemoglobin (RET-He) within a reticulocyte profile
- Fluorescent platelet channel for Immature Platelet Fraction (IPF)
Workflow Efficiencies
- Compact design delivers a smaller footprint for increased productivity.
- Upgrade the standard XN-10 CBC analyzers to XN-20 CBC analyzer to add an additional analysis channe for improved differentiation of abnormal WBC populations.
- Fluorescent Flow Cytometry using a semi-conductor laser and hydrodynamic focusing in dedicated channels.
-
Technical SpecificationsDownload Specification Sheet
- Dimensions 37.8" (W) X 36" (D) X 33.7" (H) / 315.3 LBS
-
Throughput
- Whole Blood: up to 200 samples/hour
- Body Fluid Mode: up to 40 samples/hour
- Sample Aspiration Volume 88ul
-
Parameters
- Whole Blood: WBC; RBC; HGB; HCT; MCV; MCH; MCHC; PLT (PLT-I, PLT-F); NEUT#, NEUT%; IG#, IG%; LYMPH#, LYMPH%; MONO#, MONO%; EO#, EO%; BASO#, BASO%; NRBC#, NRBC%; RDW-SD; RDW-CV; MPV; RET#, RET%; IRF, RET-HE; IPF#, IPF%
- Body Fluid: TC-BF, WBC-BF, RBC-BF PMN#, PMN%, MN#, MN%
-
Linearity
- WBC: 0.00 – 440.00 X 10³/μL
- RBC: 0.00 – 8.60 X 10⁶/µL
- PLT: 0 – 5,000 X 10³/μL
- WBC-BF: 0.000 – 10.000 X 10³/μL
- RBC-BF: 0.000 – 5.000 X 10⁶/μL
Learn more about the XN-2000
