XN-9100™ Automated Hematology System
Reshaping scalable automation.
Request Info
Optimize your lab

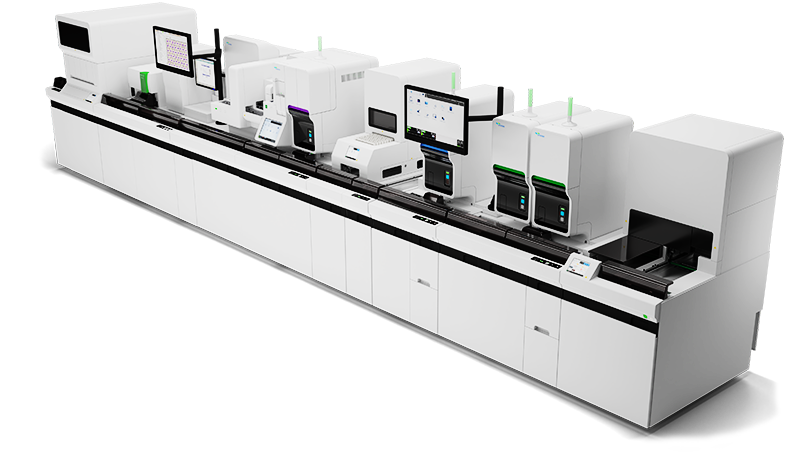

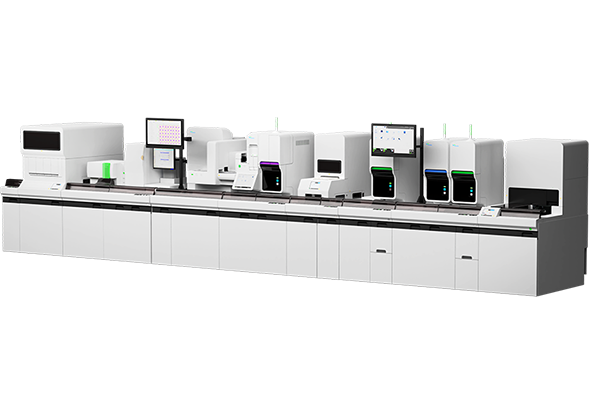

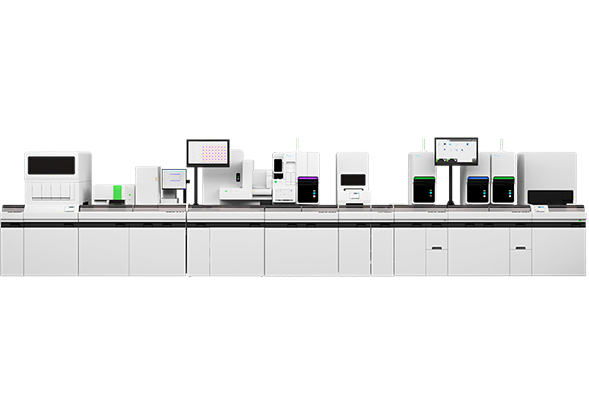

The XN-9100 is a scalable, modular automation system designed to work in labs of any size, complexity and specialty. Customized with various modules to include next-generation automated hematology analyzers, slidemaker/stainers, cell image analyzers, and more, this system meets all your needs in today's challenging healthcare environment.
Not all products and services are registered or sold in all markets.
- XN-10 and XN-20 Hematology Analyzer Modules
- SP-50 Slidemaker/Stainer Module
- DI-60 Cell Image Analyzer Module
- Hematology Analyzer Modules
- Barcode Reader
- Tube Sorter
- Tube Archiving
- Caresphere WS
- Total Lab Automation Connectivity
- HbA1c Analyzer Module
- Turn Unit
- Conveyor Extension
- Decreased turnaround time and optimized labor utilization
- Automatic workload balancing
- Hands-free rerun/reflex testing
- Fully automated reflexive slide preparation
- Barcode specimen identification and tracking
- Next Generation parameters, including IG with every Diff, NRBC with every CBC, Reticulocyte Channel, Thrombopoietic Indicators for very low platelet counts
- Body fluid mode
- BeyondCare Quality Monitor (BCQM) for real time peer-group analytics and advanced troubleshooting assistance
-
Technical SpecificationsDownload Brochure
-
Throughput
- Whole Blood up to 100 samples per Hour per module
- Body Fluid Mode - Up to 40 samples per Hour
-
Sample Aspiration Volume
- Whole Blood: 88 μL
- Pre-dilute Mode: 70 μL
- Body Fluid Mode: 88 μL
-
Parameters
- Whole Blood: WBC; RBC; HGB; HCT; MCV; MCH; MCHC; PLT (PLT-I, PLT-F); NEUT#, NEUT%; IG#, IG%; LYMPH#, LYMPH%; MONO#, MONO%; EO#, EO%; BASO#, BASO%; NRBC#, NRBC%; RDW-SD; RDW-CV; MPV; RET#, RET%; IRF, RET-HE; IPF#, IPF%
- Body Fluid: TC-BF, WBC-BF, RBC-BF PMN #, PMN%, MN #. MN%
-
Linearity
- WBC: 0.00 – 440.00 X 10³/μL
- RBC: 0.00 – 8.60 X 10⁶/µL
- PLT: 0 – 5,000 X 10³/μL
- WBC-BF: 0.000 – 10.000 X 10³/μL
- RBC-BF: 0.000 – 5.000 X 10⁶/μL
Learn more about the XN-9100™
Fast, precise and user-friendly

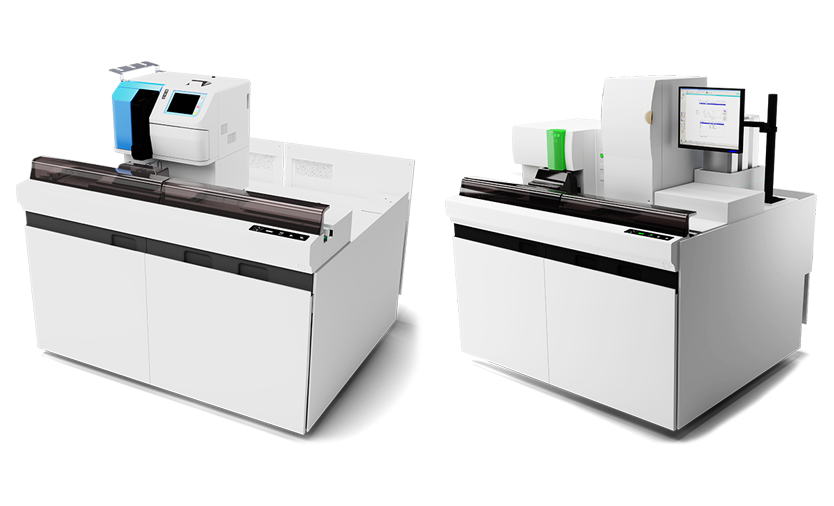

Complement your XN-9100™ Automated Hematology System with HPLC HbA1c testing on the same line.
Automated HbA1c Analyzer Module can provide:
- Direct determination of stable HbA1c with less than 1% CV (IFCC)
- Automated warm-up, stop and wash features
- 60-second analysis time per sample with variant detection
- Three modes: Standard HbA1c, Variant and B-Thalassemia
- High-resolution chromatograms and excellent separation
Reshaping Scalable Automation
Go beyond traditional service to BeyondCare℠
The BeyondCare system can help you maintain the health and longevity of your analyzers through evidence-based approach that prevents problems.
What we can provide:
- At-a-glance analyzer performance monitoring for enhanced workflow.
- Step-by-step standardized troubleshooting helps lab staff resolve issues.
- Automatic notifications to Sysmex Technical Assistance Center when an on-site service visit is needed.
You might also like...
-

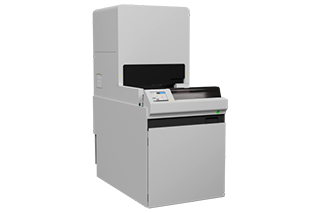

BT-50™ Barcode Terminal with Automated QC
The BT-50 optimizes the XN-9100 by automating QC. Learn how the BT-50 can benefit your lab.
View product page -
SP-50™ Slidemaker Stainer
Consistently prepare and stain slides with the latest technology.
View product page -

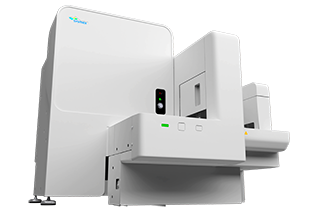

Sysmex DI-60™
