XN-2000™ Automated Hematology Analyzer

Advanced parameters and high processing volume in a small footprint.

Request Info
XN-2000 Hematology Analyzer

Two XN analyzers for maximum uptime

This dual analyzer system provides you with the confidence of an automated built-in back-up with comprehensive output parameters.

Not all products and services are registered or sold in all markets.

XN-2000 Automated Hematology Analyzer

  • Integrated co-primary system
  • 2 XN analyzer modules
  • Optional concentrated reagents simplify consumable inventory management
  • Optional floor-standing wagon for system and reagents

In addition to traditional CBC results, our Advanced Clinical Parameters include:

  • NRBCs with every CBC
  • 2 XN-10 analyzer modules or 1 XN-10/1 XN-20 if a lot of abnormal WBC
  • Reticulocyte Hemoglobin (RET-He) within a reticulocyte profile
  • Fluorescent platelet channel for Immature Platelet Fraction (IPF)

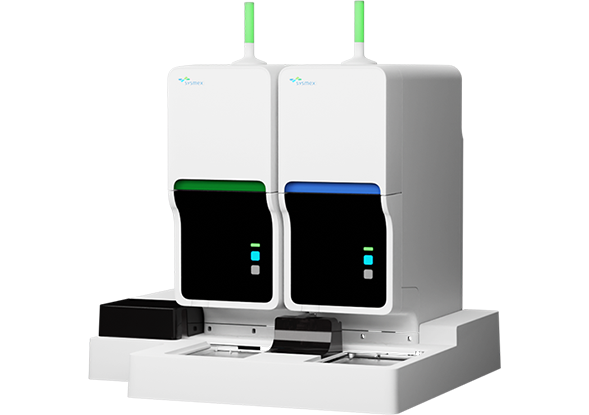

XN-2000 machine

Workflow Efficiencies

  • Compact design delivers a smaller footprint for increased productivity.
  • Upgrade the standard XN-10 CBC analyzers to XN-20 CBC analyzer to add an additional analysis channe for improved differentiation of abnormal WBC populations.
  • Fluorescent Flow Cytometry using a semi-conductor laser and hydrodynamic focusing in dedicated channels.
  • Technical Specifications
    Download Specification Sheet
  • Dimensions 37.8" (W) X 36" (D) X 33.7" (H) / 315.3 LBS
  • Throughput
    • Whole Blood: up to 200 samples/hour
    • Body Fluid Mode: up to 40 samples/hour
  • Sample Aspiration Volume 88ul
  • Parameters
    • Whole Blood: WBC; RBC; HGB; HCT; MCV; MCH; MCHC; PLT (PLT-I, PLT-F); NEUT#, NEUT%; IG#, IG%; LYMPH#, LYMPH%; MONO#, MONO%; EO#, EO%; BASO#, BASO%; NRBC#, NRBC%; RDW-SD; RDW-CV; MPV; RET#, RET%; IRF, RET-HE; IPF#, IPF%
    • Body Fluid: TC-BF, WBC-BF, RBC-BF PMN#, PMN%, MN#, MN%
  • Linearity
    • WBC: 0.00 – 440.00 X 10³/μL
    • RBC: 0.00 – 8.60 X 10⁶/µL
    • PLT: 0 – 5,000 X 10³/μL
    • WBC-BF: 0.000 – 10.000 X 10³/μL
    • RBC-BF: 0.000 – 5.000 X 10⁶/μL

Learn more about the XN-2000

  • Compare

    Customize your Solution

    Create the perfect hematology solution to fit your lab.

    Configure Now
  • Calculator

    Calculator

    See how much you've been lifting with our weight-savings calculator.

    Calculate Savings

  • Download

    Discover how the XN-Series is reshaping hematology.

    Download the Brochure

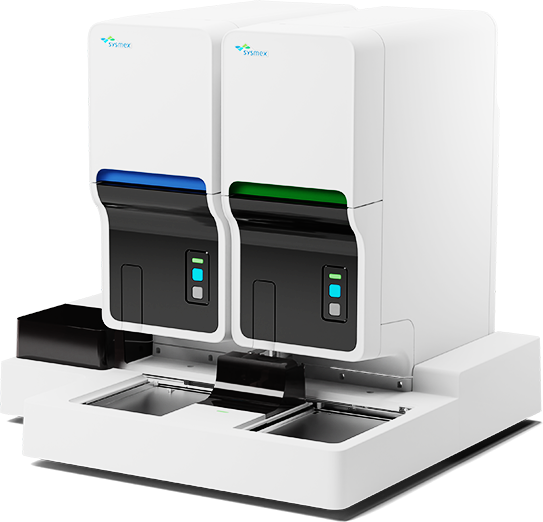

XN-2000 image

Go beyond traditional service to BeyondCare℠

The BeyondCare system can help you maintain the health and longevity of your analyzers through an evidence-based approach that prevents problems.

What we can provide:

  • At-a-glance analyzer performance monitoring for enhanced workflow.
  • Step-by-step standardized troubleshooting helps lab staff resolve issues.
  • Automatic notifications to Sysmex Technical Assistance Center when an on-site service visit is needed.
