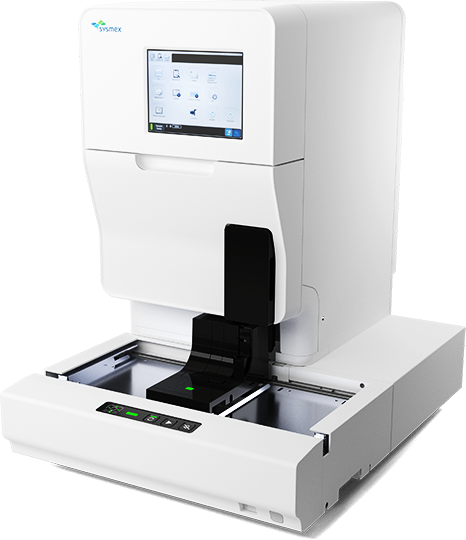

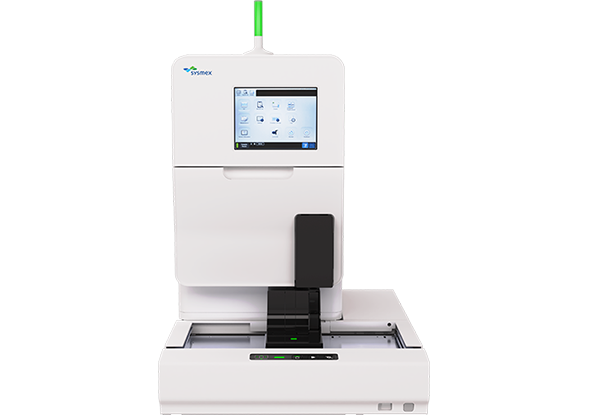

UF-5000™ Fully Automated Urine Particle Analyzer
Enhanced particle detection & identification
Request InfoBlue laser flow cytometry for improved particle identification
Fully automated analyzer that uses Fluorescent Flow Cytometry technology for accurate and precise urine particle differentiation and counts.
Not all products and services are registered or sold in all markets.
- Fluorescent flow cytometry accurately detects and enumerates 5 key reportable parameters and provides flagging alerts for 5 suspect urine parameters
- If no flags or errors, testing is complete
- Results can be autoreleased without operator intervention
- If abnormal particles are detected, they can be confirmed and classified via manual microscopic review or by automated particle image capture
- 5 reportable parameters
- 5 flagged parameters
- 450 μL aspiration volume
- Required sample volume (Rack mode 2mL; STAT mode 0.6mL)
- 105 samples max. per hour
-
Technical SpecificationsDownload Specification Sheet
- Dimensions & Weight Main unit including CV-11 sampler 26” (W) x 36” (D) x 35” (H); 232 lbs
- Throughput Up to 105/hour
- Parameters Reportable: White Blood Cells (WBC), Red Blood Cells (RBC), Epithelial Cells (EC), Casts, and Bacteria Flagged: Crystals (X’TAL), Yeast Like Cells (YLC), Pathologic Casts (Path CASTS), Sperm, Mucus
- Sample Volume Sample Volume 450μL (sampler and STAT mode)
Learn more about the UF-5000
Part of a complete urinalysis solution
The UF-5000 is one part of a scalable, modular urinalysis solution.
Go beyond traditional service to BeyondCare℠
The first automated urinalysis quality control system of its kind, BeyondCare Quality Monitor reduces analyzer downtime by providing your lab with proactive monitoring and identifying potential errors.
- Automate your urinalysis quality control management
- Enhance operator troubleshooting
- Detect shifts and trends for reliable error detection
- Simplify regulatory compliance
- Color-coded alerts for intuitive quality control interpretation
You might also like...
-

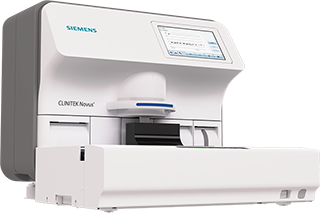

CLINITEK Novus®
A full spectrum of urinalysis screening parameters with a throughput of up to 240 samples/hour.
View product page -

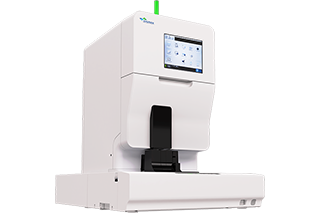

UD-10™
Automated urine particle digital imaging device that captures microscope-quality images and groups particles for classification.
View product page -

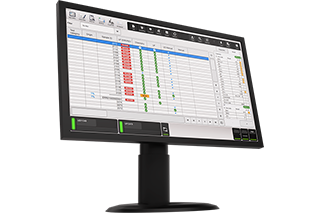

Urinalysis Data Manager (UDM™)
An intuitive data management program to quickly analyze urinalysis test results.
View product page
-

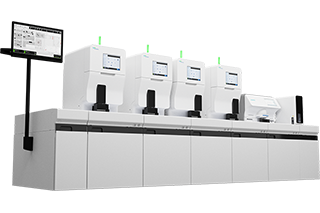

Meet the UN-Series—a scalable solution for your lab
Designed for efficient analysis of your urinalysis workload, simply load the rack and walk away. With minimal screen time required on the UN-Series, you're freed up to complete other tasks.Explore
