XN-30™ Research Use Only Automated Hematology Analyzer

The fight against malaria starts with diagnostics.

Request Info

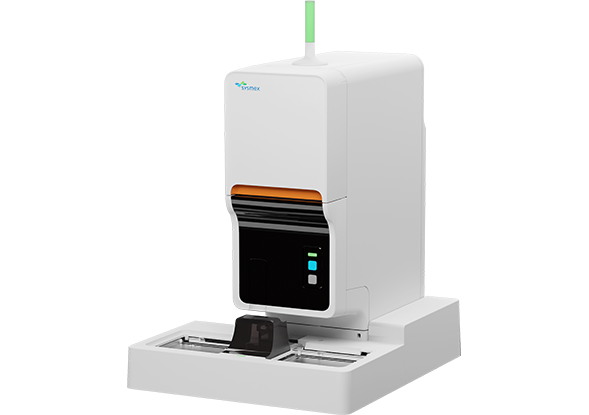

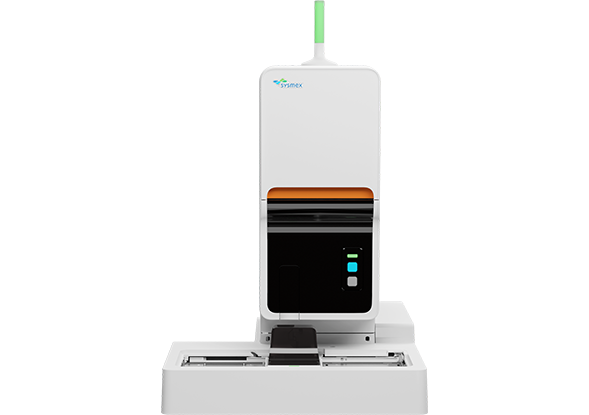

XN-30 product image

Automated malaria detection

The XN-30 RUO detects malaria in research labs currently utilizing manual microscopy or rapid diagnostic tests. Specialized reagents and advanced algorithms allow the XN-30 RUO to differentiate P. falciparum from non-falciparum species and detect levels of parasites.

Not all products and services are registered or sold in all markets.

XN-30 RUO:

  • Directly detect and quantify parasites
  • Differentiate plasmodia species
  • Complete blood count measure
  • Detection limit is 20 parasites / µL
  • Up to 60 samples per hour, sample aspiration volume 60 µL

  • Technical Specifications
    Download Brochure
  • Dimensions 20.5” (W) X 26.8” (D) X 33.1” (H); 154.3 LBS
  • Sample Aspiration Volume 60 µl
  • Throughput
    • Whole Blood: 60 samples/hour
    • Low Malaria Mode: 55 samples/hour
  • Parameters Whole Blood: WBC; RBC; HGB; HCT; MCV; MCH; MCHC; PLT; RDW-SD; RDW-CV; MPV; MI-RBC#; MI-RBC%; PDW; PCT; P-LCR
  • Principles & Technology
    • WBC and malaria-infected red blood cells (MI-RBC) fluorescence flow cytometry
    • Red Blood Cells and platelets: impedance
    • Hemoglobin: SLS-hemoglobin
  • Linearity
    • WBC: 0.00 – 440.00 X 10³/μL
    • RBC: 0.00 – 8.60 X 10⁶/µL
    • PLT: 0 – 5,000 X 10³/μL
    • WBC-BF: 0.000 – 10.000 X 10³/μL
    • RBC-BF: 0.000 – 5.000 X 10⁶/μL
