UD-10™ Fully Automated Urine Particle Digital Imaging Device

Microscope-quality digital images bring urinalysis into focus

Request Info

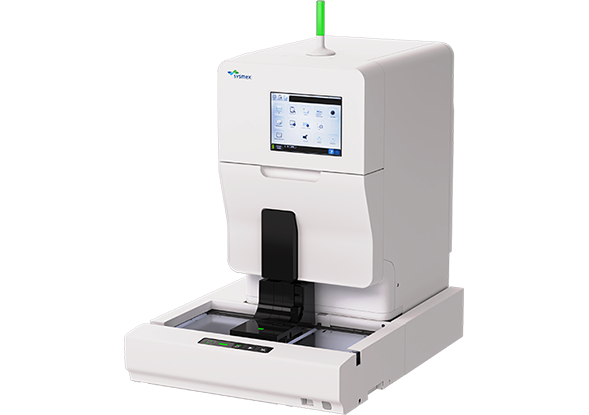

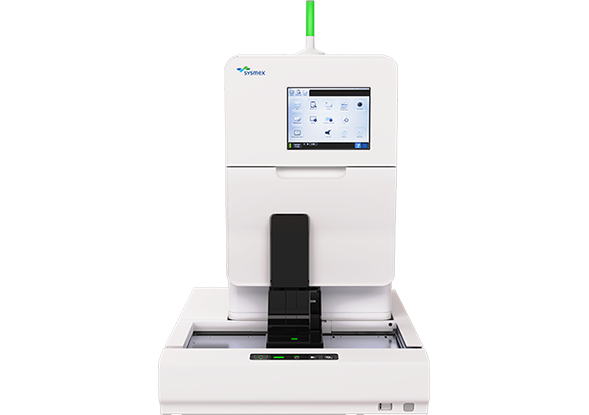

Sysmex UD-10 Urine Analyzer

Digital images worth a thousand words

Automated urine particle digital imaging device that captures microscope-quality images and groups particles for classification.

Not all products and services are registered or sold in all markets.

  • Flagged samples are analyzed with digital imaging
  • Microscope-quality images are categorized by size and class
  • Once testing is complete, sample racks move to the collecting position
  • Up to 8 particle classes, based on size
  • 300 μL aspiration volume
  • Required sample volume (Rack mode 1.6mL; STAT mode 0.6mL)
  • Up to 50 samples/hour

  • Technical Specifications
    Download Brochure
  • Dimensions & Weight Including sampler CV-11: Approx. 25.2" (W) x Approx. 35.4" (D) x Approx. 34.3" (H), Approx. 196lbs.
  • Throughput
    • 50/hour (normal mode)
    • 30/hour (precise mode)
  • Parameters
    • Up to 8 particle classes
    • 40 images/sample (normal mode)
    • 80 images/sample (precise mode)
  • Sample Volume
    • Automatic mode: 0.3 mL
    • Emergency/manual mode: 0.3 mL

Learn more about the UD-10

Part of a complete urinalysis solution

The UD-10 is one part of a scalable, modular urinalysis solution.

Video Transcript

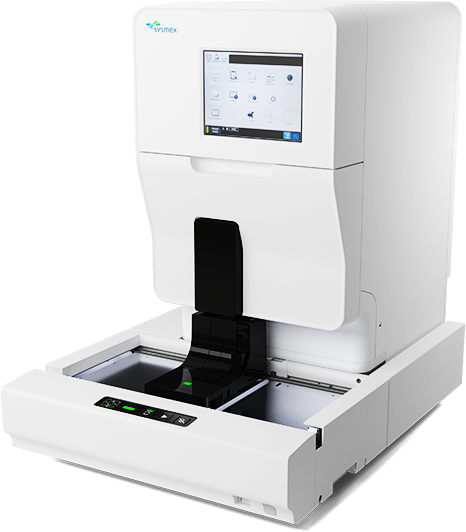

UD-10 image

Go beyond traditional service to BeyondCare℠

The first automated urinalysis quality control system of its kind, BeyondCare Quality Monitor reduces analyzer downtime by providing your lab with proactive monitoring and identifying potential errors.

  • Automate your urinalysis quality control management
  • Enhance operator troubleshooting
  • Detect shifts and trends for reliable error detection
  • Simplify regulatory compliance
  • Color-coded alerts for intuitive quality control interpretation
Explore
