UN-2000™ Automated Urinalysis System

Precise and efficient urinalysis for your lab.

Request Info
Urinalysis Analyzers
Urinalysis Analyzers

The perfect addition to your urinalysis solution

Whether you pair particle counting with urine chemistry or with confirmatory digital imaging, the UN-2000 offers first-pass accuracy and workflow efficiency in one scalable solution.

Not all products and services are registered or sold in all markets.

The UN-2000 is available in two configurations:

  • UN-2000-011: UF-5000™ + Siemens CLINITEK Novus®

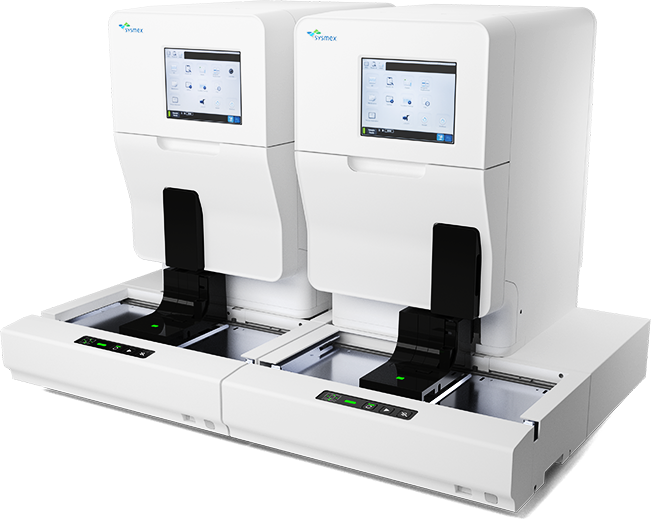

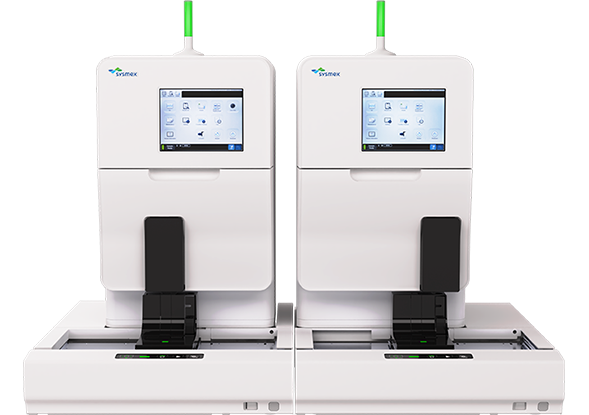

  • UN-2000-110: UD-10™ +  UF-5000™

  • Technical Specifications
    Download Specification Sheet
  • Dimensions & Weight
    • UN-2000-011 (Benchtop) Approx. 51” (W) X 35.5” (D) X 34.5” (H); 378LBS.
    • UN-2000-110 (Benchtop) Approx. 51” (W) X 35.5” (D) X 34.5” (H); 401LBS.
  • Throughput
    • UF-5000: Up to 105/hour
    • Siemens CLINITEK Novus: Up to 240/hour
    • UD-10: Up to 50/hour
  • Parameters

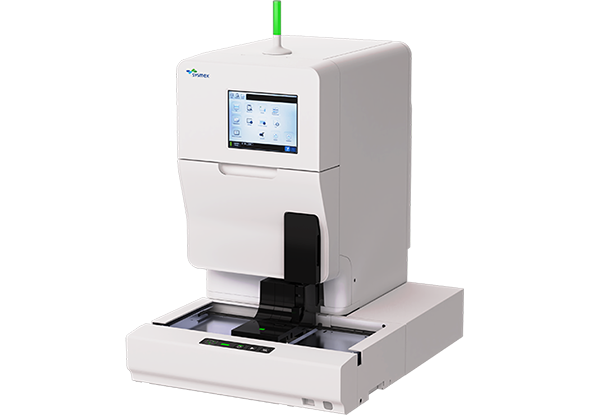

    • UF-5000:
    • Reportable: white blood cells (WBC), red blood cells (RBC), epithelial cells (EC), casts, and bacteria Flagged: crystals (X’TAL), yeast like cells (YLC), pathologic casts (Path CASTS), sperm, mucus
    • Siemens CLINITEK Novus:
    • Color, clarity, glucose, bilirubin, ketones, urobilinogen, pH, specific gravity, blood, leukocyte esterase, nitrite, protein
    • UD-10:
    • Maximum 8 particle classes, based on particle size 40 Whole Screen Images per sample (normal mode)
  • Sample Volume Varies based on test order mix and lab- defined settings.

Learn more about the UN-2000

Part of a complete urinalysis solution

The UN-2000 fully integrates as one part of a scalable, modular urinalysis solution.

UN-2000 image

Experience Award-Winning Service and Support

Sysmex sets the standard for a reliable partnership, providing expert service, proactive support and comprehensive solutions to keep your lab running smoothly.


Explore

You might also like...

  • XN-3100

    XN-3100™

    Small, smart, compact hematology automation for mid- to high-volume laboratories.

    View product page
  • UD-10 machine image

    UD-10™

    Automated urine particle digital imaging device that captures microscope-quality images and groups particles for classification.

    View product page
  • UDM image

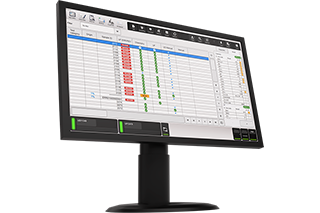

    Urinalysis Data Manager (UDM™)
