Smart automation for a new level of workflow efficiency

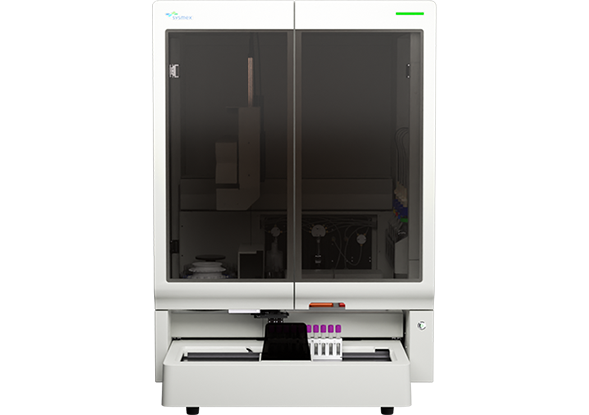

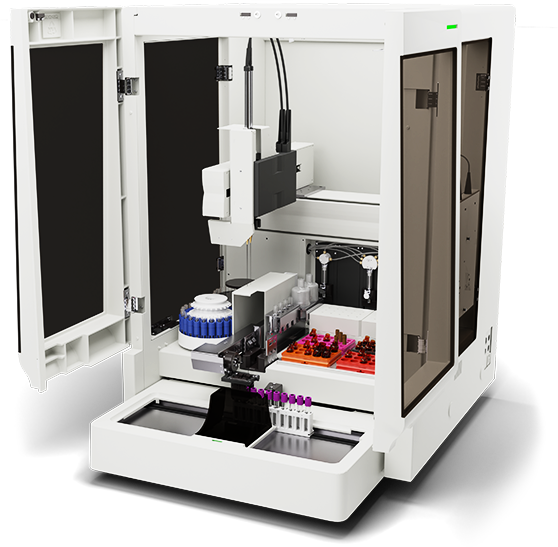

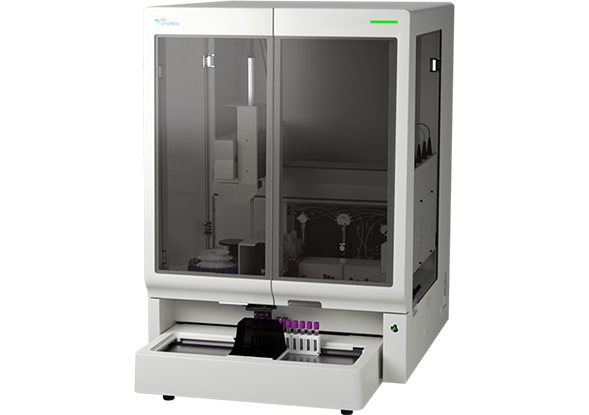

The PS-10 Sample Preparation System alleviates time-consuming processes in today’s busy clinical flow cytometry laboratory, while providing adaptable versatility for the creation of complex, laboratory tests.
Not all products and services are registered or sold in all markets.
- Antibody tracking through barcoded blocks
- Peltier-cooled locations keep antibody vial blocks and reagent cocktail blocks at optimum temperature
- Automated cocktailing function for up to 90 simultaneous on-board antibody vials
- Four open vial positions are available to accommodate a larger range of sample tube sizes
- High-capacity smart auto-sampler for reliable and safe specimen handling
- Efficient automation for high processing volume
- Eliminate operator-dependent variability
- Create custom tests, panels and procedures
- Customize variables
-
Technical SpecificationsDownload Specification Sheet
- Weight 285lbs (129kg)
- Dimensions 41.8”H x 29.7”W x 37”D (106.3cm x 75.5cm x 94cm)
-
Sample Tube Capacity
- 50 primary sample tubes simultaneously via autosampler
- Up to 48 daughter tubes via 2 racks: 24 tube fixed rotor or 12 or 24 position fixed rotor compatible with Helmer UltraCW® II centrifuge for automated sample wash steps
- Reagent Racks Positions for up to 90 simultaneous on-board vials
Regarder : Vidéo sur la cytométrie en flux PS-10
Le système de préparation d’échantillons PS-10 atténue le principal goulot d’étranglement dans les laboratoires cliniques de cytométrie en flux très fréquentés d’aujourd’hui, tout en offrant une flexibilité exceptionnelle pour la création de tests de laboratoire complexes.
Learn more about the PS-10™
-
-
-
Want to learn more about the PS-10™?
Download the brochure to see if this product is a fit for your lab.
You might also like...
-

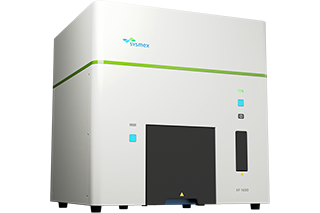

XF-1600™ Flow Cytometer
